FORGED SW /Thread (NPT)pipe fitting / BW SS pipe fittings /
FLANGEFLANGE (WN /SO/BL)
BW PIPE FITTINGS(BEND, ELBOW, TEE REDUCER,, CAP, CROSS, STUB END.)

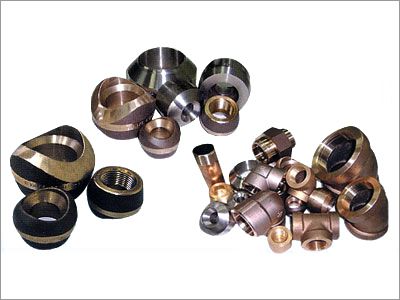

FORGED SW /Thread (NPT)pipe fitting 2000/3000/6000/9000lbsELBOW TEE CROSS UNION COUPLING PLUG BSHING NIPPLE WELDOLET THREADOLET FLANGEOLET
MAIN PRODUCTION
OEM : FORGED SW /Thread (NPT)pipe fitting / BW SS pipe fittings / FLANGE
|
FLANGE (WN /SO/BL) |
|
|
Duplex stainless steel |
ASTM A182 F51 F53 F55 F60 F44 |
|
UNS S31803 S32750 S32760 S32205 S31254 2507 |
|
|
Stainless Steel |
ASTM A 182 F904L 347H 347 316L 316 304L 304 |
|
Alloy Steel |
ASTM A 182, GR F1, F11, F22, F5, F9, F91 |
|
Nickel Alloys |
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Carbon Steel |
ASTM A105 A350 LF2, LF6 A694 F42, F46, F52, F60, F65, |
|

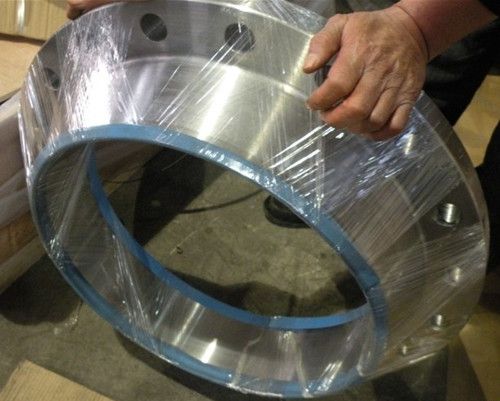

BL SO WN or special flange according to Drawing |
|
|
From DN15--DN600 EVEN BIGGER |
|
|
ASTM/ANSI B16.5 B16.47A/B DIN JIS BS AS |
|
Specials: To customer drawings
Specialties:All flanges can be supplied with grooves, back faces, bevels and bores inlaid with a variety of alloys.
This is carried out to approved procedures by qualified welders and, as usual full certification is available.
|

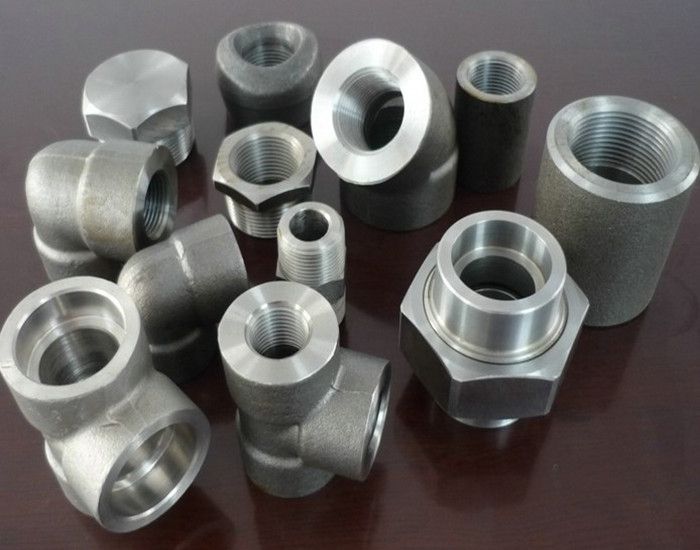

Socket Weld and Screwed Pressure Fittings (N.P.T. and B.S.P.) 2000LBS/3000LBS/6000LBS/9000LBS |
|
|
Duplex stainless steel |
ASTM A182 F51 F55 F53 F60 F44 |
|
UNS S31803 S32750 S32760 S32205 S31254 2507 |
|
|
Stainless Steel |
ASTM A 182 F904L 347H 347 316L 316 304L 304 |
|
Alloy Steel |
ASTM A 182, GR F1, F11, F22, F5, F9, F91 |
|
Nickel Alloys |
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Carbon Steel |
A105 A694 F42, F46, F52, F60, F65, |
|
ELBOW TEE CROSS UNION COUPLING PLUG BSHING NIPPLE WELDOLET THREADOLET FLANGEOLET |
|
|
1/2" ---4" OR ACCORDING TO CUSTOMERS |
|
|
ASTM B16.11 BS 1740 BS 3799 MSS SP-79, MSS SP-83, MSS SP-95 |
|
Specialties: Difficult sizes Higher Pressures Non standard but with dawing
|
BW PIPE FITTINGS(BEND, ELBOW, TEE REDUCER,, CAP, CROSS, STUB END.) |
|
|
Duplex stainless steel |
UNS S31803 S32750 S32760 S32205 S31254 2507 |
|
Stainless Steel |
ASTM A 403 WP904L 310 321 347H 347 316L/316 304L/304 |
|
Alloy Steel |
ASTM A 420 WP1, WP11, WP22, WP5, WP9, WP91 |
|
Nickel Alloys |
Monel 400 & 500, Inconel 600 & 625, Incolloy 800, 825, Hastelloy C22,C276 |
|
Carbon Steel |
ASTM A234 WPB/C, WPHY-42, WPHY-46, WPHY-52, WPHY-56, WPHY-60, WPHY-65, WPHY-70 |
|
BEND, ELBOW, TEE REDUCER,, CAP, CROSS, STUB END. |
|
|
From 15MM to 3200MM |
|
|
ASTM/ANSI B16.9 B16.28 DIN JIS |
|
Services: Pickle, Polish, Heat Treatment, Sand blasting, Galvanize, Painting. etc.
Test Certificate: Third Party Inspection is available .provides services non-destructive testing,Post Weld Stress Relief, hydrostatic testing , MTC - EN10204/3.1.B , NACE MR 01-75.Specialize: Long Bend with Radius R=SD,3D, 5D, 10D , etc.
Concentrated Pipe, Barred Tee etc.
Tags: 316, 304, flange, pipe fittings, elbow, tee, reducer, cap,
Address & Contact
- Contact Person:
- Mr.Peter Zhang
- Address:
- NO.100,JIANSHE RODE,ZHONGHYUAN AREAS ,ZHENGZHOU CITY,CHINA FACTORY ADD1:Longtan Industrial Areas, Yanshan County, Cangzhou City Hebei Province,China FACTORY ADD2:Yongzhong Street,Longwan District,Wenzhou City,Zhejiang,China
- Contact Number:
- 0086-15639936318 0092-3323682177
- City:
- Karachi

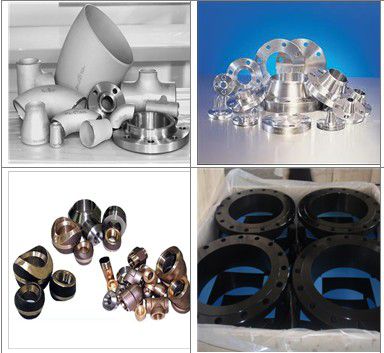

Photo Gallery
